The successor to the tried and tested EMU has arrived!

EMU Black is one behemoth of a stand-alone ECU, designed with the most advanced and complex engines on the market today in mind, Along with custom build projects where only a class leaning ECU will suffice.

During the predecessors lifetime, ECU Master were able to amass a tremendous amount of data that significantly improves their ability hone both their hardware and software to suit their customers not only with looks and fitting of the EMU Black, But also the usability and programming, The EMU Black is a dream to use and set up.

The EMU Black is developed with road cars, track cars, race cars, superbikes, track bikes and even racing boats in mind!

The EMU Black allows control of fueling, ignition and auxiliary processes on a multitude of engines with up to 12 cylinders including drive-by-wire and variable valve timing set ups.

ECU Masters adaptable firmware allows even the most awkward crank trigger patterns to be utilized, giving you the ability to install your EMU Black knowing that even in the future when new trigger patterns are released your ECU will adapt and will not need to be upgraded. The ECU Master EMU Black can drive up to 12 smart coils (6 passive) directly and has no need for external amplifier/power modules of any kind.

You will also have access to easy to install firmware upgrades completely free, forever! Which will improve system capabilities over time with engines that are still to hit the market, allowing new strategies, trigger patterns & CAN data streams to be utilised.


The EMU Black features more value while maintaining the highest levels of quality than any other aftermarket ECU. With advanced drive-by-wire strategies provide huge ranges of throttle control alongside detailed fault/error checking. The EMU features the best "bang for your buck" of all stand-alone ECU options. Easily matching all available functions of any stand-alone management systems with various inputs, outputs & options. Unlike other stand-alone systems, EMU Black has a built in wideband input using the Bosch LSU 4.2 and the LSU 4.9 sensor wired directly to the EMU Black, MAP control connection utilizing the on board 4 bar MAP sensor, Along with not one but two EGT probe inputs!! As well as an input that enables you to directly connecting a Flex Fuel ethanol content sensor.

ECU Masters EMU Black package allows for greater flexibility while reducing costs and removes the need for external/additional control systems saving you time and money on your ECU purchase and the associated wiring that other stand-alone ECUs require


To ensure reliability and longevity the EMU Black is manufactured to conform to IPC-S-815A standards and an optical inspection is carried out to ensure perfection in all EMU ECUs. Special surface coatings and IP60 Enclosure ensure the EMU Black remains operational in even the harshest environments maintaining normal functioning whether the tempurature is -40˚C or as hot as +105˚C!



Temperature range AECQ100 GRADE2 (-40 to +105˚C)
Reverse battery protection Yes, internal
Operating voltage 6-22V, immunity to transients according to ISO 7637
Enclosure IP 60, custom CNC machined aluminium
Size (mm) and weight(g) 150x72x31, 390

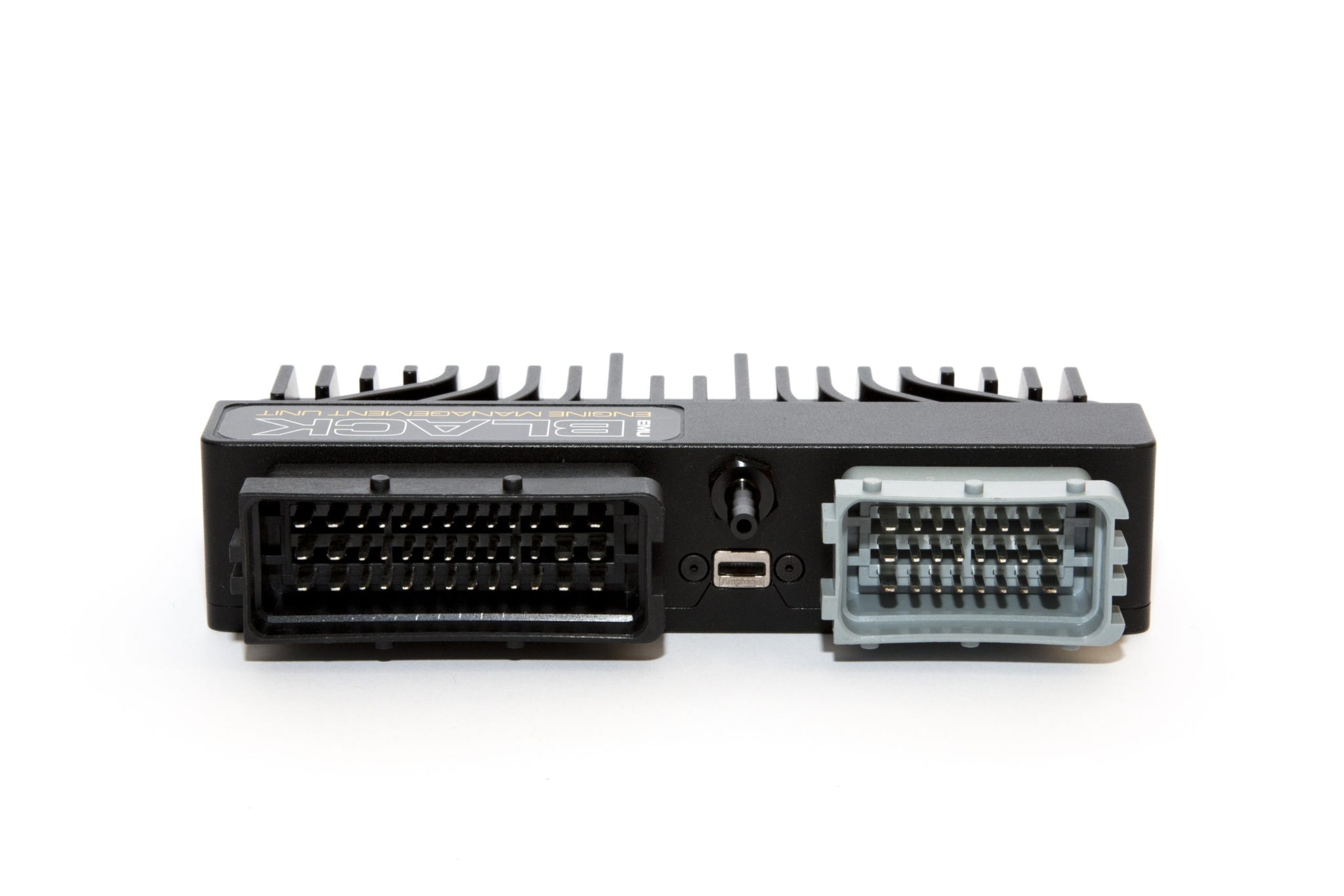

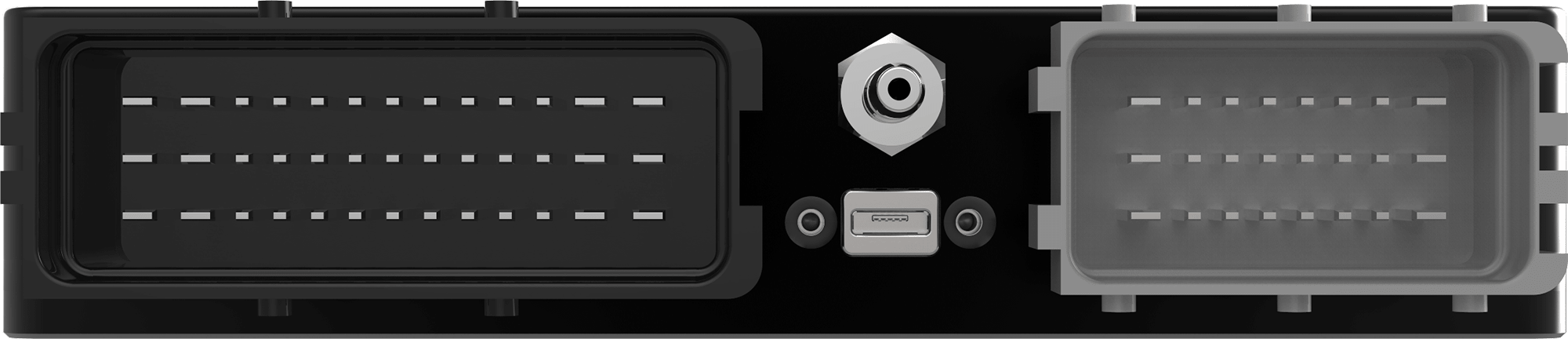

Connectors 1 x 24, 1 x 39 FCI Automotive connector
PC communication USB (with PC client software), serial, CAN


Injector outputs 6 protected outputs 5A, low side
Ignition outputs 6 outputs 7A(15A peak) (passive & active coils supported)
Aux outputs 6 protected outputs 5A, low side
Other outputs Full bridge up to 7A, can be used as separate outputs or 2 H-Bridges
WBO heater Protected low side up to 5A
Communication Serial, CAN BUS 2.0B


Analog inputs 9 inputs, resolution 10Bits, 0-5V (protected)
EGT inputs 2 for K-Type thermocouple
Knock sensor 2 inputs
Oxygen sensor LSU 4.2, LSU 4.9 or Narrow band
Trigger inputs 3 (primary, 2 cams) Hall/ VR software selectable
VSS 1 (Hall / VR)
Flex Fuel Sensor Yes
Switch inputs 3 inputs, switched to ground


Temperature sensors IAT, CLT, Oil temperature, AC evap temperature
Pressure sensor MAP, Oil pressure, Fuel pressure (user defined characteristic), AC pressure sensor, Back pressure
Oxygen sensor LSU 4.2 or 4.9 (built in controller), Narrow band, external WBO controllers
Speed Vehicle speed sensor (VR/HALL), Gear sensor (sensor, calculated)


Injectors Up to 8 HiZ injectors (sequential)
Injection angle control 0-720 deg, start or end of injections
Battery compensation User defined, wizard for popular injectors
Fueling strategies VE based speed density, Alpha N
Air charge temp. Based on IAT and CLT
VE table 2 tables 16×20 (Load x RPM), resolution of 0.1%
Individual cylinder trim Yes
Staged injection Yes
Additional correction Oxygen sensor corrections, EGT correction (per cylinder), BARO, TPS vs MAP, TPS vs RPM, Warmup, Nitrous, LC, ALS, ASE, Fuel pressure, Knock sensor
Lambda based real time correction Using Lambda target table
Acc. / Deceleration enrichment Yes


Ignition outputs 6 for passive and active coils (software selectable)
Supported triggers N-1, N-2, N-3, N+1, Multitooth, Subaru triggers, Nissan trigger, Lotus Elise, Audi trigger, Renault Clio Wiliams / Alpine, Colt 1.5CZ, Wrangler
Ignition angle table 2 tables 16×20 (Load x RPM), resolution of 0.5 Deg
Per cylinder trim Yes
Dwell time battery compensation Used defined,  wizard for popular coils
Odd fire compatibility Application dependent
Additional correction CLT, IAT, TPS vs MAP, Nitrous,  Idle, Knock sensor, LC, Pit limiter, ALS, Flat shift, Timers, Acc. enrichment


Channels 2
Resonant frequency range 1-20kHz, 3rd order AAF
Sampling Ignition event driven, knock window
Actions Ignition retard, fuel enrichment, dashboard indication


Control type PWM solenoids (2,3 wires), drive by wire, stepper motors (bi and unipolar),  ignition cut, fuel cut
Control strategy Open / Close loop , ignition angle control
VE correction Yes, for Alpha-N
Corrections AC clutch, coolant fan, analog input


Boost ref  and target tables 2 sets 10×10 (TPS vs RPM)
Control strategies Open / Closed loop (PID based)
Corrections Gear, VSS, IAT, EGT


Control strategy Advanced 3D PID + static friction compensation
Supported throttles All with DC motor and current requirement lower than 6.5A


Wizard for 28 popular electronic throttles

PPS to throttle position characteristic 3D table
BLIP support Yes
ALS support Yes


TC strategy Delta RPM, gear compensation
Torque reduction Spark cut using 3D table (16×20)
Sensitivity control 10 position rotary switch


Supported systems VVTi, MiVec, VANOS, Double Vanos
Number of camshafts 2
Control strategy PID based closed loop, CAM angle target tables 12×12


Ethanol content measurement Yes
Fuel temperature measurement Yes
Tables blending VE, IGN, Lambda/AFR, Boost, Cranking fuel, ASE, Warmup
Fuel temperature PW correction Yes


ALS 2 independent ALS setting, DBW support
Shift light Per gear shift light
Launch control Yes
Gear cut Yes (Open loop), DBW blip supported


Source: Switch, load cell, CAN

Pit limiter Yes
Rolling anti lag Yes


Fail safe values for critical sensors Yes
Dashboard indication of failures Yes, user defined
Over temperature engine protection Yes (oil and coolant), user defined, RPM limit
Low oil pressure protection Yes, user defined, shut off
Fuel pressure protection Yes, fuel dose compensation, RPM limit, engine shut off
High exhaust temperature Alarm, per cylinder fuel trim, boost limit


CAN standard 2.0B 125, 250, 500, 1000 kbps
Supported CAN Dashes ECUMASTER, Motec M800 Set 1, Haltech E8 E11v2, Pectel SQ 6, AEM
Supported OEM CAN streams BMW E46, Citroen C2, Mazda RX8, Ford ST, Polaris RZR, Mini Cooper R53, Fiat 500, Renault Clio, Lotus, Ford Fiesta, Ford ST, EVO X (AYC support)


Unused injection outputs can be used as AUX output Yes
Output functions Fuel pump, coolant fan, parametric outputs, nitrous control, PWM 3D table output,  AC clutch, main relay, speedometer, tachometer
Password protection Yes, 2 levels
Timers Fuel, Ignition, Boost, timers controlled by virtual outputs
Serial dashboard support AIM, RaceTechnology
Autotune Yes
Built in trigger scope Yes
Logging Real time logging to PC computer, logging on external loggers (serial / CAN)
