G4+ Thunder

G4+ Thunder

Regular price
£2,880.00
Sale price
£2,880.00
Regular price
Sold out
Unit price
per
Tax included.

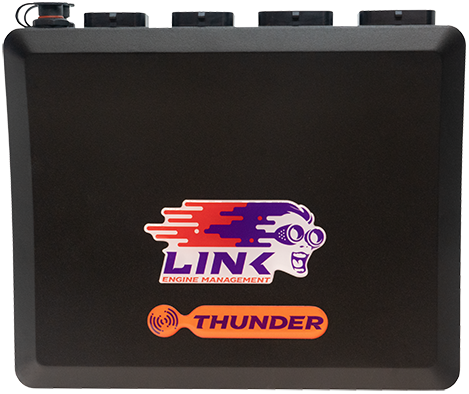

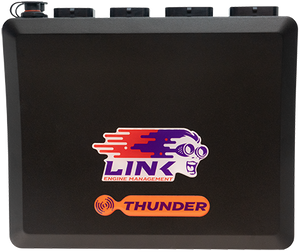

The Thunder is our biggest, most advanced ECU yet.


The Thunder is designed for high end applications requiring maximum performance, flexibility and tuning control. The Thunder has more inputs, more outputs and more features than any other Link ECU.

The Thunder has all the features found on other LinkECU's plus onboard 3 axis accelerometer, two EGT thermocouple inputs, two Onboard Lambda Controllers and 2 x E-throttle Controllers.

If it is Direct Injection you are after, consider the Force GDI.



SPEC OVERVIEW

Inputs

16 x Digital inputs (6 are high speed differential type for ABS sensors etc)

4 x Temperature inputs

16 x Analog inputs

2 x Trigger inputs

2 x Knock inputs

2 x LSU 4.9 Wideband lambda sensor inputs

2 x K Type Thermocouple inputs

Outputs

8 x Peak and Hold injection drives

8 x Ignition drivers

18 x Auxiliary outputs^

+5V Sensor power supply

+8V Sensor power supply

^unused fuel and ignition drives can be used as additional Aux outputs

Communications

2 x CAN bus

1x Serial (RS232) connection

1x USB tuning connection

Advanced features not found on the Xtreme or Fury:

2 x Onboard digital wideband lambda controllers, no separate box required. Higher accuracy, simple setup and long sensor life are some of the advantages compared to a separate analog input wideband device.

2 x Fully programmable E-throttle controls complete with capability of gear shift throttle blip and antilag (for engines with 2 electronic throttle bodies).

2 x K type thermocouple EGT inputs – direct connection of EGT sensors with no extra interface box.


Physical

Dimensions: 180mm(L) x 210mm(W) x 40mm(H) (without looms)

Mass: 1060 gram


Watch a short video introducing the G4+ Thunder on YouTube here.
