Easy to install. Affordable. Reliable.

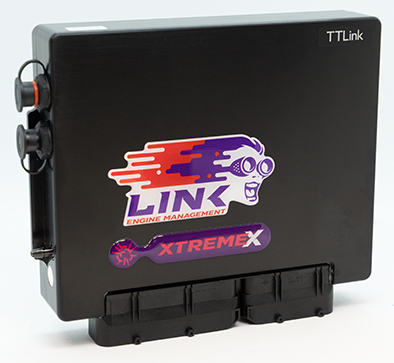

G4X PlugIn ECUs offer the latest in engine management technology, designed to maximize the potential from your car.
This ECU fits in the factory OEM location. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.

The Link G4X ECU TTLink TTX PlugIn Designed for the VWAG PQ34 1.8l Turbo enginewith E-Throttle.

  • This ECU works with manual transmissions only.
  • Includes an onboard 4 bar or 7 bar MAP sensor.
  • Most factory features are supported.
  • Check the features tab for I/O expansion options
  • This PlugIn ECU is not compatible with the CANJST cables. To connect to the CAN use CANLTW (PN 101-0211) or CANF (PN 101-0020)

Suitable applications:




  • Engine must be 1.8T
  • ECU header must have two connectors, 121 pin total
  • Must be Drive by Wire (E-throttle)
  • Must be manual transmission
  • FWD or 4WD (Haldex)





The following vehicles are known to be compatible:



Make

Model

Years

Engine code

Audi

TT

99-02

AJQ

VW

Beetle

2005

AWU

VW

Passat

2000



VW

Golf

2001

AUM



The following vehicles are likely to be compatible with the ECU, but are untested:



Make

Model

Years

Engine code

Audi

A3

98-00

AJQ



A3

99-00

APP



A3

99-01

ARZ



A3

00-05

ARX



A3

00-05

ARY



A3

00-05

AUM



A3

00-05

AUQ



A4

98-00

APU



A4

00-02

AVJ



A4

00-02

AWT



A4

02-03

BEX



A4

04-07

BFB



A6

98-00

APU



A6

00-02

AWT



S3

98-01

APY



S3

00-05

BAM



S3

02-03

AMK



TT

98-00

APX



TT

99-00

APP



TT

99-02

AJQ



TT

00-02

AMU



TT

00-05

ARX



TT

00-05

ARY



TT

00-05

AUM



TT

00-05

AUQ



TT

00-05

BAM



TT

00-06

AWP



TT

05-06

BFV



TT

05-06

BVP



TT

05-06

BVR









Seat

Alhambra

00-04

AWC



Ibiza

99-00

AQX



Ibiza

00-01

AYP



Ibiza

04-08

BJX



Ibiza

05-08

BBU



Leon

98-00

AJQ



Leon

99-00

APP



Leon

00-01

AJQ



Leon

00-05

ARY



Leon

00-05

AUQ



Leon

00-05

BAM



Leon

02-03

AMK









Skoda

Octavia

99-01

ARZ



Octavia

00-05

ARX



Octavia

00-05

ARY



Octavia

00-05

AUM



Octavia

00-05

AUQ









VW

Bora

00-05

ARX



Bora

00-05

ARY



Bora

00-05

AUM



Bora

00-05

AUQ



Bora

02-06

AWP



Golf

99-01

ARZ



Golf

00-05

ARX



Golf

00-05

ARY



Golf

00-05

AUM



Golf

00-05

AUQ



Golf

02

AWP



Golf

02-06

AWP



Jetta

01-09

AWP



New Beetle

99-00

APH



New Beetle

99-00

AVC



New Beetle

02-04

AWP



Passat

98-00

APU



Passat

00-02

AWT



Polo

04-08

BJX



Polo

05

AWP



Polo

05-08

BBU



Sharan

00-04

AWC



Vehicles with the following engine codes are known not to be compatible:

AEB, AGU, AJH, AJL



G4X PlugIn Key Features (where applicable):

  • Up to 6D fuel and ignition mapping
  • Precision closed loop cam control (four cam, independent control)
  • Sequential fuel delivery
  • Digital triggering, all OEM patterns
  • OEM idle hardware supported
  • 5D boost control with three switchable tables
  • Motorsport features - antilag, launch, flat shift
  • Continuous barometric correction (on board)
  • CAN port
  • QuickTune - automated fuel tuning
  • Individual cylinder correction
  • USB tuning cable included
  • Stats recording into on-board memory
  • Gear compensations for spark, boost and fuel
  • Real time selectable dual fuel, ignition and boost maps
  • Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
  • Boost control referenced to gear, speed or throttle position
  • 512 mega bytes data logging memory
  • Staged injection
  • Knock with "windowing"



I/O Expansion Options
There is no separate expansion connector on the TT Link. Expansion pins are accessible through the main header, listed below.

  • Pin 110 - An Temp 3
  • Pin 111 - An Volt 10
  • Pin 112 - DI9
  • Pin 113 - Ign 6
